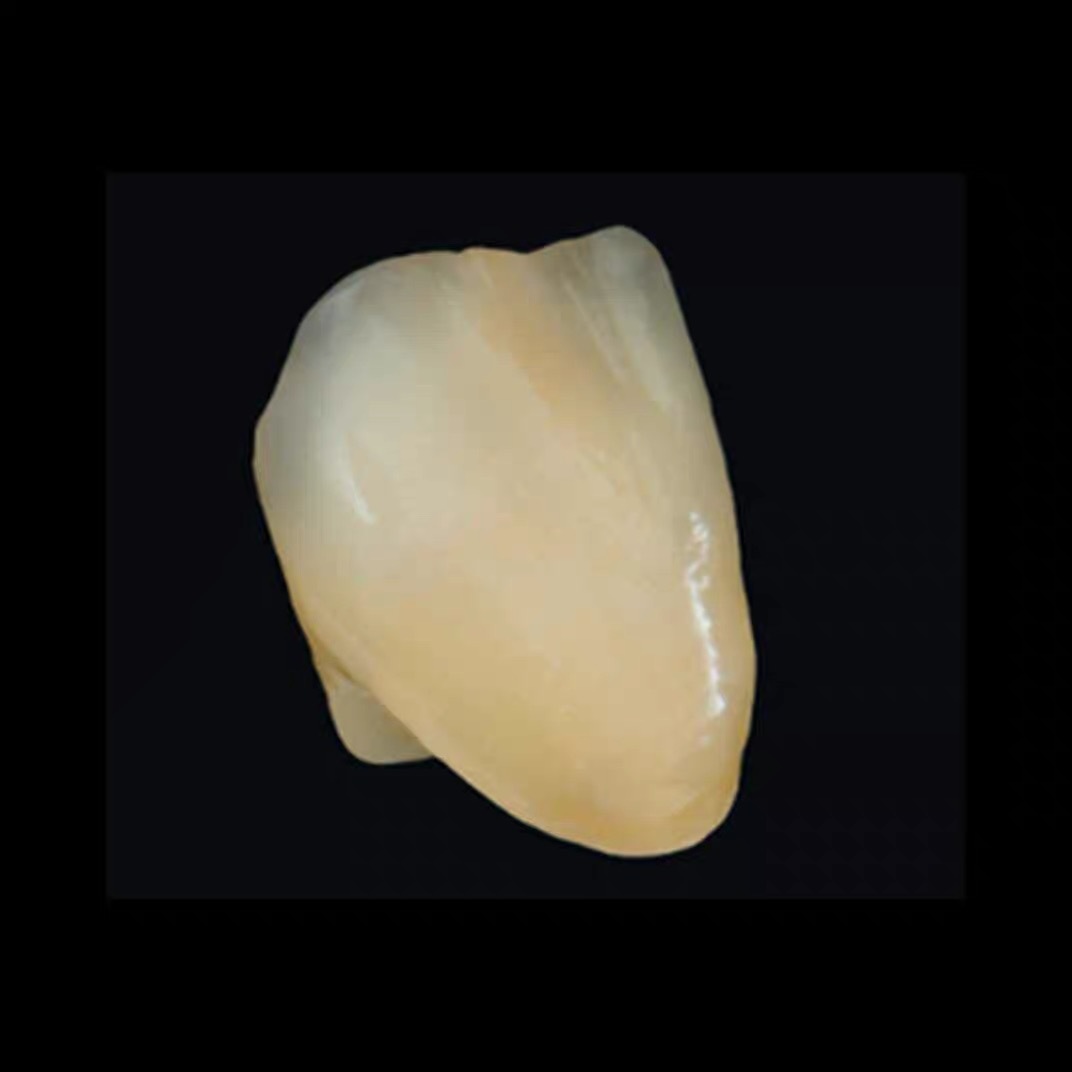

Multi-Layer Aesthetic Restoration with VITA VM9 Porcelain System

A high-end dental laboratory in Germany specializing in aesthetic ceramic restorations faced a complex challenge when commissioned to produce a full-mouth rehabilitation case involving 28 units of zirconia-based restorations. The patient, a 52-year-old executive, required comprehensive restoration of both maxillary and mandibular arches due to severe tooth wear and aesthetic concerns.

The primary challenge lay in achieving natural aesthetics across diverse restoration types—from anterior veneers requiring maximum translucency to posterior crowns demanding strength and durability—while maintaining color harmony throughout the entire dentition. The laboratory needed a ceramic system capable of delivering consistent, predictable results across this complex case while accommodating the varying functional and aesthetic demands of different tooth positions.

Following detailed case analysis and material evaluation, the laboratory selected the complete VITA VM9 porcelain system for this comprehensive restoration project. The decision was driven by the system's modular design, which offered specialized materials for each layer of the restoration build-up, enabling precise control over both optical properties and mechanical performance.

The VM9 system's compatibility with colored zirconia substructures (CTE approximately 10.5) provided an additional advantage, allowing the technicians to leverage the underlying framework color as part of the overall aesthetic strategy rather than treating it merely as a structural support.

The implementation followed a systematic multi-layer approach that maximized the unique properties of each VM9 component:

Zirconia frameworks were designed with specific space allocation for the multi-layer ceramic build-up. Anterior units received 0.6-0.8mm space to accommodate the full layering sequence, while posterior units were designed with 0.8-1.0mm space to ensure adequate material thickness for functional loading.

The frameworks were fabricated using colored zirconia selected to match the patient's underlying tooth structure, providing a chromatic foundation that reduced the ceramic thickness required to achieve target shades.

The VITA VM9 Base Dentine formed the foundational layer of the restoration build-up. Applied directly to the prepared zirconia surface, this material established the primary body color and provided the structural foundation for subsequent layers.

For this case, the laboratory utilized the comprehensive VM9 shade system, selecting base dentine shades that complemented the colored zirconia substructure. The fine particle structure of the base dentine enabled smooth application and excellent adaptation to framework contours, creating a uniform chromatic foundation across all 28 units.

The VITA VM9 Transparent Dentine was strategically applied to create optical depth and natural light transmission effects. In anterior regions, this material was used to develop incisal translucency and halo effects that mimicked natural tooth structure. The transparent dentine's refractive properties enabled the creation of lifelike depth without requiring excessive material bulk.

Technicians applied the transparent dentine in varying thicknesses based on tooth position and functional requirements—thicker applications in incisal regions for maximum translucency, thinner applications in posterior units where opacity was preferred for strength.

The VITA VM9 Enamel material provided the final surface layer, delivering both aesthetic refinement and functional protection. The enamel layer's formulation offered excellent surface luster and wear characteristics while contributing to the overall optical integration of the restoration with adjacent natural teeth.

Special attention was given to surface characterization, with technicians creating subtle texture variations and surface morphology that enhanced light reflection patterns and contributed to natural appearance.

For units requiring cervical aesthetic enhancement—particularly those with gingival recession or high smile line exposure—the VITA VM9 Gingiva Porcelain was applied to create natural root coloration and soft tissue integration.

The gingival porcelain's specialized formulation provided appropriate chroma and value for cervical regions, with the 12-gram packaging enabling precise color matching and minimal waste for the specific units requiring this enhancement.

The comprehensive restoration project delivered exceptional outcomes across multiple evaluation criteria:

Clinical evaluation demonstrated excellent color matching and optical integration across all 28 units. The multi-layer approach enabled natural light transmission and reflection patterns that were virtually indistinguishable from adjacent natural teeth. Patient satisfaction ratings exceeded 95%, with particular appreciation for the lifelike quality and natural appearance of the anterior restorations.

Follow-up evaluation at 12 months post-delivery showed no signs of chipping, cracking, or surface degradation. The optimized material thickness and firing protocols resulted in restorations that demonstrated excellent wear compatibility with opposing dentition and maintained surface integrity under functional loading.

The standardized layering protocol reduced processing time by 25% compared to the laboratory's previous ceramic system, attributed to predictable material behavior and reduced need for remakes or adjustments. The modular system design enabled efficient inventory management and reduced material waste.

The VITA VM9 system's performance in this case was supported by several key material characteristics:

Base Dentine

Natural feldspathic ceramic optimized for zirconia compatibility

Fine particle structure enabling thin-layer application

Comprehensive shade system including classical and 3D Master options

12-gram packaging for laboratory efficiency

Transparent Dentine

High translucency for optical depth creation

Compatible with base dentine for seamless integration

Enables natural light transmission effects

Enamel

Surface luster and wear resistance

Contributes to final aesthetic characterization

Protects underlying layers from functional wear

Gingiva Porcelain

Specialized formulation for cervical aesthetics

Natural root coloration matching

Compatible with full VM9 layering protocol

CTE Compatibility

Optimized for zirconia substructures (CTE ~10.5)

Ensures long-term bond stability

Minimizes thermal stress during processing

Throughout the project, the laboratory maintained comprehensive documentation including:

• Digital photography at each fabrication stage
• Shade matching records and color verification
• Firing schedule optimization data
• Quality control checklists for each restoration unit
• Patient feedback and clinical outcome tracking

This documentation enabled continuous protocol refinement and provided a foundation for future complex case management.

This case study demonstrates the capability of the VITA VM9 porcelain system to address the complex demands of comprehensive aesthetic rehabilitation. The system's modular design, with specialized materials for each restoration layer, enables dental laboratories to achieve predictable, natural-looking results across diverse clinical scenarios.

For laboratories considering implementation of the VM9 system for complex cases, the following recommendations emerge from this experience:

1. Invest in comprehensive training on multi-layer build-up techniques
2. Develop standardized protocols for each material component
3. Optimize firing schedules for specific furnace configurations
4. Implement systematic quality control at each fabrication stage
5. Maintain detailed documentation to support continuous improvement

The documented outcomes support the VITA VM9 system as an effective solution for dental laboratories committed to delivering exceptional aesthetic and functional results in complex restorative cases.
